Anti-Sway Systems for Overhead Cranes: How They Work and When They Pay
An overhead crane anti-sway system controls bridge and trolley acceleration so the suspended load develops less swing during travel and reaches the target with less residual motion. The strongest business cases are high-cycle routes, long travel distances, precision placement, restricted clearances, fragile or high-value loads, and automated handling. Anti-sway is less likely to repay its cost on infrequently used maintenance cranes with short, slow movements and generous placement space.
The Direct Answer: Buy Anti-Sway for a Measurable Process Problem
Anti-sway creates value when operators currently spend time waiting for a load to settle, correcting its position with repeated jogs, travelling at unnecessarily low speed, or protecting nearby equipment from a suspended load that is difficult to control. It can also be a core control layer for an automated crane that must follow repeatable paths and place loads inside defined tolerances.
| Operating Condition | Anti-Sway Value | Main Buyer Benefit | Decision |
|---|---|---|---|
| High-cycle production route | Potentially high because small time savings repeat across many cycles. | Shorter settling time, more consistent cycles and less operator correction. | Build an ROI model from measured cycles and settling time. |
| Precision or restricted placement | High when residual sway delays final approach or threatens nearby assets. | Controlled approach, improved repeatability and reduced contact risk. | Specify measurable residual sway and settling limits. |
| Automated or remote operation | Usually important because repeatable motion cannot depend on an operator manually damping the load. | Stable path execution, predictable transfer time and better positioning control. | Integrate anti-sway with positioning, zoning and fault recovery. |
| Occasional maintenance lifts | Often low if travel is short, slow and infrequent. | Possible handling assistance, but limited annual time savings. | Prioritize suitable VFD control, visibility and operator training first. |
| Outdoor, flexible or unstable loads | Application-dependent because wind, rotating loads, flexible rigging or liquid movement may not match a simple pendulum model. | Potential swing reduction only when sensors and control logic suit the disturbance. | Require an application study and representative site testing. |
1. Why Does an Overhead Crane Load Sway?
A load suspended from wire ropes behaves approximately like a pendulum during small-angle motion. Bridge or trolley acceleration moves the suspension point while the load initially lags behind. Deceleration can add to the existing swing or cancel it, depending on its timing. Abrupt starts, rapid reversals, operator jogging, diagonal travel, changing hook height and external disturbances can all create additional motion.
Rope Length
Longer suspension length produces a slower natural swing period. The control system must know or estimate the effective pendulum length as the hook is raised or lowered.
Acceleration Profile
The timing and magnitude of acceleration and deceleration determine how much sway energy is introduced and whether remaining motion is cancelled.
Load and Rigging Geometry
A long load, offset center of gravity, lifting beam, four-point suspension, magnet or grab can respond differently from a compact hook load.
External Disturbance
Wind, load pickup, off-center lifting, contact with guides, process vibration and liquid sloshing can create motion not caused by travel commands alone.
A Useful Buyer-Level Approximation
For a simple pendulum at small angles, the natural period is approximately T = 2π√(L/g), where L is effective suspension length and g is gravitational acceleration. This explains why one set of motion timings cannot control every hook height. Real crane loads may need more detailed models or direct swing feedback because rope reeving, rigging, load geometry and disturbances change the response.
The 600t pumped-storage overhead crane project combines dual-hook synchronization, intelligent anti-sway and digital monitoring for major powerhouse equipment handling.
2. How Do Overhead Crane Anti-Sway Systems Work?
Electronic anti-sway systems modify the bridge and trolley speed references so commanded motion does not excite unnecessary pendulum movement and so remaining sway is reduced before the load reaches its target. Supplier terminology varies, but buyers will commonly encounter model-based control, sensor-feedback control and anti-sway integrated with automatic positioning.
| System Type | How It Works | Typical Inputs | Strength | Limitation to Check |
|---|---|---|---|---|
| Model-based / drive-based anti-sway | Uses a mathematical pendulum model and shaped acceleration/deceleration commands to minimize excitation and residual swing. | Bridge/trolley speed, position or encoder data, hoist position/effective rope length and configured load information. | Can provide effective control without directly measuring load angle and may use fewer field sensors. | Performance depends on model accuracy and may be less robust to wind, rotating loads, flexible rigging or external disturbances. |
| Closed-loop sensor-feedback anti-sway | Measures hook or load movement and continuously corrects horizontal travel to reduce observed sway. | Camera, laser, angle sensor, inertial sensor or other load-tracking feedback plus crane motion and hoist data. | Can respond to actual load behavior and disturbances within sensor range and control authority. | Requires reliable line of sight or protected sensors, calibration, diagnostics and a defined response to signal loss. |
| Automatic positioning with anti-sway | Combines travel positioning, path planning and sway control so the crane reaches programmed pickup and set-down locations with controlled residual motion. | Absolute position, target coordinates, hoist/load data, zone status, obstacle information and process commands. | Best fit for repetitive routes, unmanned warehouses, process integration and traceable handling. | Requires accurate site mapping, interfaces, recovery logic, cybersecurity, operating rules and complete acceptance testing. |
| Mechanical guidance / constrained load | Uses rigid masts, guide columns, stabilized spreaders, reeving geometry or other mechanical arrangements to limit free load movement. | Structural guidance, clearances, guide reactions and load interface rather than only control software. | Useful where the process needs a physically constrained attachment or precise vertical interface. | Adds structure, weight, guide wear, reaction loads and alignment requirements; it is not equivalent to electronic anti-sway. |
What Happens During One Travel Move?
- Read operating state: The controller receives travel command, hoist position, speed/position feedback, load information and enabled-system status.
- Calculate the motion profile: The anti-sway function generates an acceleration and speed trajectory appropriate for the effective pendulum length and target movement.
- Command bridge and trolley drives: Variable-frequency drives execute the shaped references while encoders and drive feedback confirm axis motion.
- Correct actual movement: A feedback system can adjust commands from measured load movement; a model-based system estimates the sway state.
- Control final approach: Deceleration is timed to reach the target with the residual sway and settling behavior required by the process.
- Verify completion: Automatic systems confirm position, load state, permitted sway, zone clearance and readiness for the next process step.
3. What Hardware and Data Does Anti-Sway Require?
Anti-sway performance depends on the complete motion-control chain. The crane structure, drives, motors, brakes, encoders, hoist position, PLC, communications and any swing sensors must work as one system. Software alone cannot correct excessive backlash, wheel slip, poor brake release, unstable power, weak communications or an inaccurate runway interface.
| System Element | Role in Anti-Sway | Buyer Verification |
|---|---|---|
| Bridge and trolley drives | Execute controlled speed and torque references with repeatable acceleration, deceleration and braking. | Drive type, encoder arrangement, control mode, braking and low-speed behavior. |
| Hoist position / rope length | Provides effective pendulum-length information as the hook moves vertically. | Measurement source, initialization, reeving calculation, accuracy and response after power loss. |
| Bridge/trolley position | Supports path control, target approach, zoning and automatic movement. | Absolute/relative measurement, repeatability, reference recovery and environmental protection. |
| Load or swing sensor | Measures actual hook/load angle or movement for closed-loop correction. | Coverage, blind zones, contamination, lighting, calibration, latency and failure detection. |
| PLC and anti-sway controller | Calculates profiles, manages modes, supervises signals and coordinates process interlocks. | Program ownership, backups, licenses, diagnostics, change control and spare strategy. |
| Operator interface | Shows anti-sway status, mode, inhibition, faults and manual/degraded operation. | Clear indication, permitted overrides, alarm instructions and operator training. |
| Communications and plant interface | Exchanges target positions, load identity, zone permissions, equipment status and diagnostics. | Protocol, ownership, update rate, network failure behavior and cybersecurity requirements. |
For new equipment, anti-sway requirements should be included before the motor, drive, encoder and control architecture is frozen. The automated overhead crane buyer guide explains the additional process, zoning, recovery and plant-interface data needed when anti-sway forms part of a larger automation system.
4. When Does an Anti-Sway System Pay for Itself?
Payback comes from repeated time savings and avoided operational loss—not from the feature name. Measure the current process before requesting a commercial guarantee. Separate pure travel time from operator correction, settling, final positioning, waiting for people to clear the area and delays caused by upstream or downstream equipment.
| Value Driver | Baseline to Measure | Potential Benefit | Evidence After Commissioning |
|---|---|---|---|
| Settling time | Seconds between travel stop and permitted placement at each rope-length/load band. | More productive time and fewer corrective jogs. | Repeat the same route/load test and compare average plus worst-case results. |
| Cycle consistency | Average, spread and maximum cycle time across operators and shifts. | More predictable process feeding and production planning. | Cycle histogram and exceptions under representative production. |
| Operator intervention | Number of jogs, re-approaches or manual corrections per move. | Lower workload and more repeatable handling. | Controller event data and observed route study. |
| Load/product contact | Damage, near-contact, rework and downtime records linked to uncontrolled movement. | Reduced exposure to impact when the process and system are correctly designed. | Trend comparable events while accounting for production volume. |
| Automated throughput | Moves/hour, queue time, position retries and process waiting. | Higher route utilization and stable machine-to-machine transfer. | Production data over an agreed availability window. |
Simple Anti-Sway Payback Calculation
Annual time saved = cycles per year × verified seconds saved per cycle ÷ 3,600.
Annual net benefit = value of recovered productive time + avoided damage/rework + avoided downtime + labor benefit − annual software, calibration and maintenance cost.
Simple payback period = incremental installed anti-sway cost ÷ annual net benefit.
Use conservative, auditable values. If the crane is not the process bottleneck, shorter crane travel may not increase plant output; value only the time or risk that can actually be converted into a business benefit.
For high-cycle investment decisions, also confirm that the selected drives, brakes, wheels and structure match the actual utilization. The overhead crane selection guide explains the duty-cycle and load-spectrum information buyers should define before requesting a quotation.
5. How Should Buyers Specify and Test Anti-Sway?
A good specification defines the operating envelope and test method instead of prescribing only a brand or software name. The supplier must know which loads, hook heights, routes, speeds and disturbances the system is expected to control.
| Specification Item | Buyer Must Define | Acceptance Evidence |
|---|---|---|
| Load envelope | Minimum, typical and maximum load; lifting beam, magnet, grab or other attachment; load dimensions and center-of-gravity range. | Tests with representative approved loads and rigging configurations. |
| Suspension range | Minimum and maximum effective rope length, reeving and whether hoisting occurs during travel. | Performance tests at selected low, middle and high hook positions. |
| Travel profiles | Bridge/trolley distances, maximum speeds, accelerations, combined motion and normal stopping positions. | Recorded command, position, speed and load-motion traces for agreed routes. |
| Residual sway | Permitted load angle or horizontal displacement, reference point and measurement time after travel. | Calibrated measurement under repeatable start conditions and defined tolerances. |
| Settling time | Time from travel completion until the load remains within the permitted sway band. | Multiple repeated runs with average, maximum and excluded-test rules. |
| Positioning | Bridge, trolley and load placement tolerance where automatic positioning is included. | Repeated approaches from different directions and positions. |
| Failure and override | Behavior after sensor loss, encoder fault, communication failure, invalid rope length or anti-sway disable command. | Controlled fault-injection tests, alarms, speed restrictions and recovery procedure. |
| Documentation and support | Software backup, licenses, parameters, calibration, diagnostics, spares, training and remote support. | Complete handover dossier and demonstrated maintenance workflow. |
Installation and commissioning scope should include encoder alignment, sensor calibration, drive tuning, runway checks, protected cable routes and representative-load testing. Review the crane installation planning checklist before freezing the anti-sway acceptance plan.
6. New Crane vs Anti-Sway Retrofit
A new crane allows the control architecture, drives, encoders, brakes, sensors and acceptance tests to be engineered together. A retrofit can still be practical, but the existing crane must be surveyed before the supplier commits to performance.
| Evaluation Area | New Crane | Retrofit Requirement |
|---|---|---|
| Drives and motors | Selected for the required control mode and duty. | Confirm VFD compatibility, encoder provision, motor condition, braking and cable requirements. |
| Mechanical condition | New mechanisms can be designed for repeatable response. | Inspect wheels, rails, reducers, couplings, brake release, backlash and skew behavior. |
| Position feedback | Integrated into the design and protected installation. | Add suitable encoders/positioning devices, brackets, targets, cable routes and reference logic. |
| Control platform | PLC, drives, network and HMI selected as one system. | Check processor capacity, network, software access, obsolescence and panel space/cooling. |
| Shutdown and validation | Commissioned before production handover. | Plan isolation, installation, software migration, testing, operator retraining and rollback contingency. |
A retrofit quotation should separate necessary control modernization from the anti-sway function itself. Review crane lifecycle and modernization services when evaluating the existing equipment condition and shutdown scope.

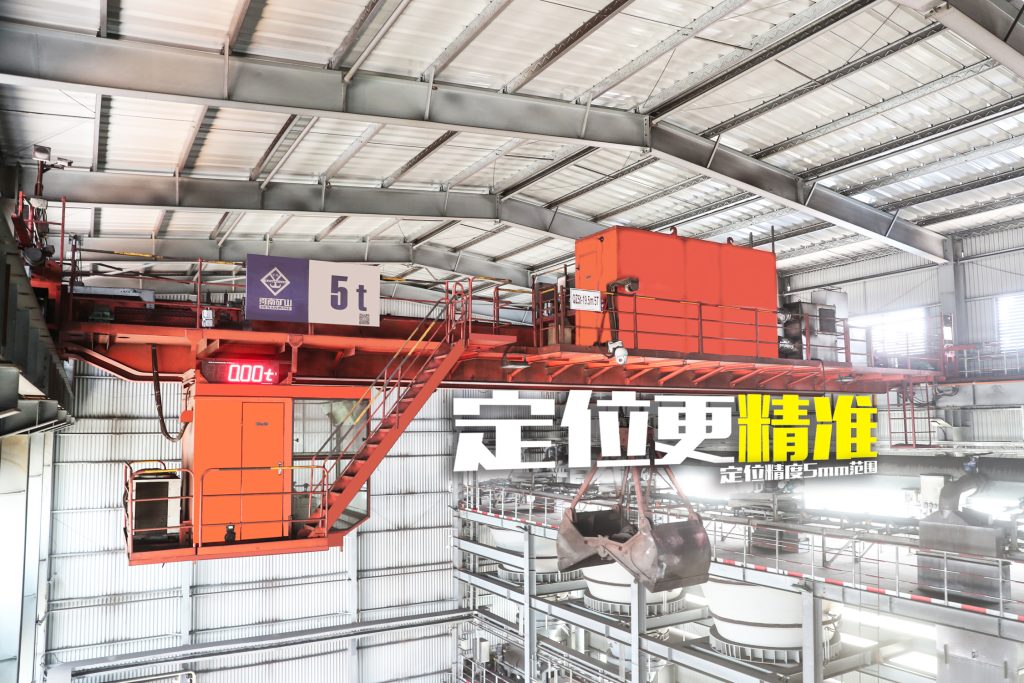

7. Applications Where Anti-Sway Often Adds Value
Review the smart aerospace overhead crane project and the automated warehouse crane project when defining precision and high-cycle requirements.
8. Anti-Sway RFQ Checklist for Crane Buyers
Include this data in the same tender package sent to every bidder. Use the complete overhead crane RFQ checklist for the remaining structural, mechanical, electrical, installation and commercial requirements.
9. Frequently Asked Questions
Does anti-sway completely eliminate load swing?
No system should be assumed to eliminate every disturbance. Properly engineered anti-sway reduces commanded-motion sway within a defined load, rope-length and operating envelope. Wind, pickup shock, contact, rotating loads and flexible rigging can still create movement.
Is a VFD the same as an anti-sway system?
No. A VFD provides adjustable acceleration and speed control, which can make movement smoother. Anti-sway adds a control function that shapes or corrects motion using pendulum behavior, rope-length information and, in some systems, direct swing feedback.
Can anti-sway be used with pendant or radio remote control?
Yes, depending on the control architecture. The system can modify travel commands in manual or remote operation, but the operator must understand response, status indications, override rules and stopping behavior.
Does anti-sway replace collision avoidance or safe operating procedures?
No. Anti-sway controls load motion; it does not automatically provide obstacle detection, personnel detection, overload protection, safe zoning or a complete safety-rated control function. Those requirements must be engineered separately and integrated where needed.
Can anti-sway control bridge and trolley motion at the same time?
Yes, suitable systems can control sway in both horizontal axes and coordinate diagonal or combined travel. The buyer should include representative two-axis routes in the acceptance test.
Can an existing overhead crane be retrofitted?
Often yes, but feasibility depends on drives, motors, encoders, brakes, PLC, communications, hoist-position data, panel space, runway condition and available shutdown time. A site survey and control audit should precede a guaranteed quotation.
How should anti-sway ROI be calculated?
Measure annual cycles, settling time, corrective movements, damage and downtime. Value only the verified improvement that the plant can convert into productive time or avoided loss, then divide the incremental installed cost by the annual net benefit.
Final Recommendation
Measure the Existing Process
Record routes, loads, hook heights, travel time, settling time, corrective jogs, annual cycles and damage/downtime history.
Select the Control Concept for the Disturbance
Choose model-based, sensor-feedback, automated or mechanically guided control from the real load behavior—not a feature checklist.
Specify Measurable Performance
Define residual sway, settling time, positioning, routes, load range, rope-length range, fault behavior and repeatable test conditions.
Calculate Conservative Payback
Use verified seconds saved, annual cycles and avoidable loss. Do not assume faster crane motion increases plant output unless the crane is the actual bottleneck.
