Low Headroom Electric Single Girder Overhead Crane

Existing or new workshops where roof clearance limits lifting height and the buyer wants to maximize hook service space without raising the building.

The low-headroom single-girder crane should be considered when the main problem is not floor area but vertical clearance. By placing the hoist to the side and using a compact arrangement, the source design reduces the crane's overall height and gives the hook more usable service space.

For a buyer, the first document to provide is the workshop cross-section. Roof level, runway level, highest load position and required hook height determine whether this low-headroom layout delivers enough value.

Quick Specifications

Request A Low Headroom Single Girder Crane Quote

Product Overview

The low-headroom electric single-girder crane is an improved design based on the electric single-girder crane.

The lifting mechanism is a low-headroom electric hoist.

The hoist is side-mounted and the compact design reduces overall height, increasing hook service space.

For a new procurement project, the final configuration should be selected from the actual suspended load, span, lifting height, runway condition, operating cycle, working environment and applicable project requirements. Parameters not published on the source page are therefore treated as project-specific rather than guessed.

Why Choose Low Headroom Single Girder Crane?

More Hook Service Space

The side-mounted compact hoist arrangement reduces overall crane height and improves usable lifting space.

Solves Headroom Constraints

The source specifically positions the product for situations where traditional cranes lose lifting height because of insufficient clearance.

Low Self-Weight

A lightweight structure reduces dead load on the workshop.

Low Wheel Pressure

Lower wheel pressure can be beneficial in existing or lighter building structures.

A3–A5 Medium Duty

The source states A3–A5 working duty for medium-intensity service.

Product Images

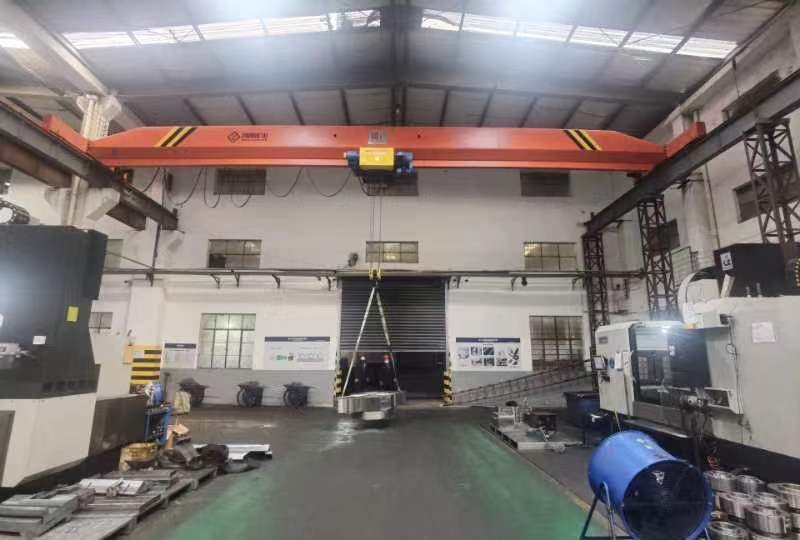

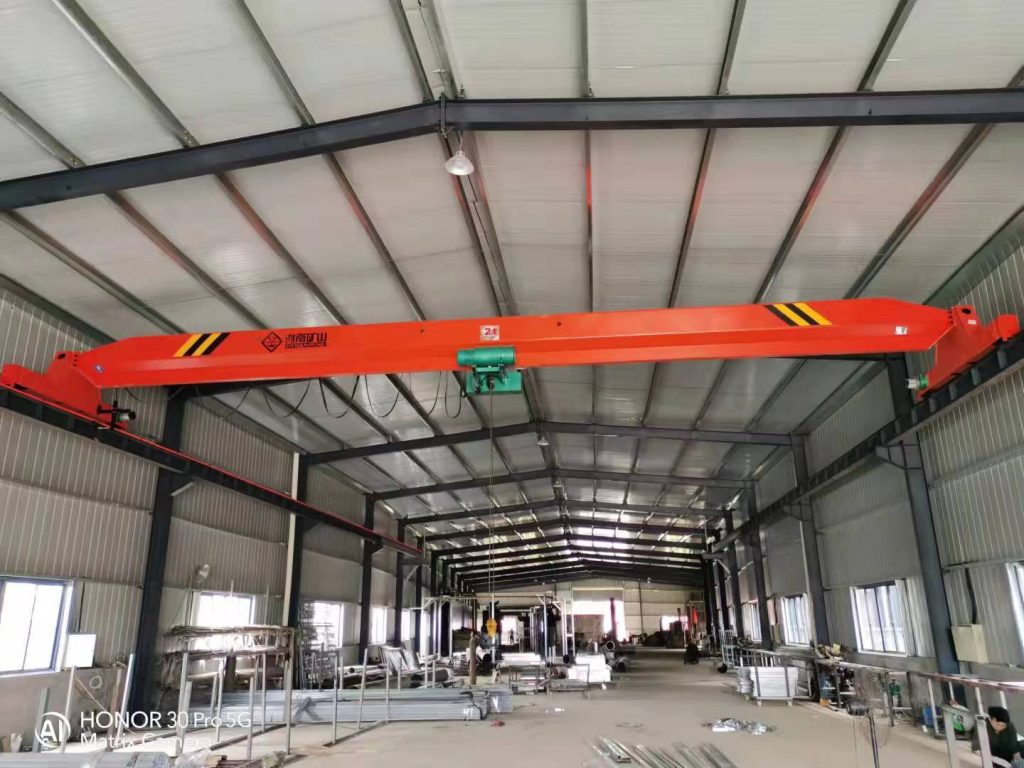

Henan Mine Crane low headroom single girder crane product image showing the crane structure and lifting arrangement.	Henan Mine Crane low headroom single girder crane product image showing the crane structure and lifting arrangement.	Source gallery image associated with the Low Headroom Single Girder Crane product page, showing the crane or an industrial application reference.
Source gallery image associated with the Low Headroom Single Girder Crane product page, showing the crane or an industrial application reference.	Source gallery image associated with the Low Headroom Single Girder Crane product page, showing the crane or an industrial application reference.	Source gallery image associated with the Low Headroom Single Girder Crane product page, showing the crane or an industrial application reference.

Main Crane Components

Technical Parameters

Source-Confirmed Features & Project Options

Source-confirmed product facts:

• The low-headroom electric single-girder crane is an improved design based on the electric single-girder crane.
• The lifting mechanism is a low-headroom electric hoist.
• The hoist is side-mounted and the compact design reduces overall height, increasing hook service space.
• The design addresses lifting-height limitations caused by insufficient headroom in traditional cranes.
• The structure has low self-weight and low wheel pressure.
• The drive can use a Nanjing special conical-rotor motor or three-in-one drive, with low operating noise.
• The source states A3–A5 working duty for medium-intensity operation.

Buyer-defined items for quotation:

• Capacity, span and lifting height
• Operating frequency and duty
• Control method
• Power supply
• Required safety functions
• Special lifting attachment if any
• Installation and commissioning scope

Application Scenarios

How to Select the Right Low Headroom Single Girder Crane

1. Provide a Workshop Cross-Section

Show floor, runway, roof, columns and any obstructions. Headroom cannot be selected accurately from span and tonnage alone.

2. State the Required Highest Hook Position

Define the highest point the hook must reach above equipment or process fixtures.

3. Confirm Maximum Load and Span

These affect bridge, hoist and runway selection.

4. Verify A3–A5 Duty Is Suitable

Compare your operating cycle with the source-stated medium-intensity duty range.

5. Check Existing Runway Capacity

For retrofit projects, verify wheel loads and runway structure before ordering.

Safety & Control: What Buyers Should Confirm

• Rated capacity and overload-protection requirements
• Upper / lower travel and hoisting limits appropriate to the application
• Emergency-stop and braking requirements
• Electrical protection and site power conditions
• Operator control method and visibility
• Any project-specific anti-collision, warning, environmental or special safety requirement

Installation & Maintenance

Before installation, confirm runway span, rail or runway-beam condition, elevation, straightness, power supply, access for erection and the lifting plan for the crane structure. Retrofit projects should also provide available building and runway information for structural review.

Maintenance requirements should follow the final supplied configuration and manual. Routine work normally includes inspection of the lifting mechanism, brakes, rope or chain where applicable, wheels, drives, fasteners, limits and electrical protection, with lubrication and replacement intervals defined by the actual product configuration and duty.

What Information Do We Need for a Quote?

Frequently Asked Questions

What is the main advantage of a low-headroom single-girder crane?

Its compact, side-mounted hoist arrangement reduces overall height and provides more usable hook service space.

Is low headroom the same as low building height?

Not exactly. The key issue is the vertical distance between runway level, crane structure, hoist and roof. A workshop cross-section is needed to evaluate it.

What duty class does the source list?

The source states A3–A5 for medium-intensity operation.

Is it suitable for factory renovation?

It can be particularly useful in existing buildings where roof height is fixed and additional hook height is needed.

How do I compare it with a standard LD crane?

Compare the usable hook height, headroom requirement, runway loads and project cost using the same workshop drawing and lifting requirements.
