LXB Explosion-Proof Electric Single Girder Suspension Crane
For classified flammable or explosive environments where the plant also needs floor-free suspended crane coverage.
Henan Mine Crane lxb explosion-proof suspension crane showing the suspended crane structure and overhead lifting arrangement.
The LXB explosion-proof electric single-girder suspension crane is an underhung crane developed from the standard suspension electric-hoist crane. Its lifting mechanism is an explosion-proof electric hoist, and it provides vertical lifting, cross travel and long travel for intermittent and repetitive material handling in flammable or explosive environments.
Buyers should start with the hazardous-area specification before selecting crane capacity. The source page does not publish one universal explosion-proof grade, so the final equipment must be matched to the approved gas or vapor classification, temperature requirement and governing project standard.
Quick Specifications
| Product Model |
LXB |
| Type-Test Product Name |
Electric Single Girder Suspension Crane |
| Lifting Mechanism |
Explosion-proof electric hoist |
| Lifting Capacity |
Configured according to project requirements |
| Span / Working Width |
Configured from building structure and required crane coverage |
| Lifting Height |
Configured according to workshop and process requirements |
| Runway / Suspension System |
Roof-supported / building-supported suspended runway |
| Control Method |
Configured according to project requirements |
Best For: For classified flammable or explosive environments where the plant also needs floor-free suspended crane coverage.
Request A LXB Explosion-Proof Suspension Crane Quote
Product Overview
Developed from the suspension electric-hoist bridge-crane concept.
Explosion-proof electric hoist is used as the lifting mechanism.
Intended for intermittent and repetitive material handling in flammable and explosive environments.
For procurement, unpublished capacity, span and speed ranges should not be assumed from similar crane models. Henan Mine Crane should size the final crane from the building structure, suspension points, load, lifting height, operating cycle, environment and applicable project requirements.
Why Choose LXB Explosion-Proof Suspension Crane?
Explosion-Proof Hoisting
The source confirms an explosion-proof electric hoist as the lifting mechanism.
Suspended, Floor-Free Layout
The crane is carried below the roof structure, helping keep the production floor clear.
Lightweight Structure
Low self-weight can reduce the load applied to building supports.
Flexible Coverage
Suspension layouts can be adapted to supported workshop areas.
Useful Where Hazardous Areas and Floor Constraints Overlap
The product combines hazardous-environment lifting with the space advantage of an underhung crane.
Product Images

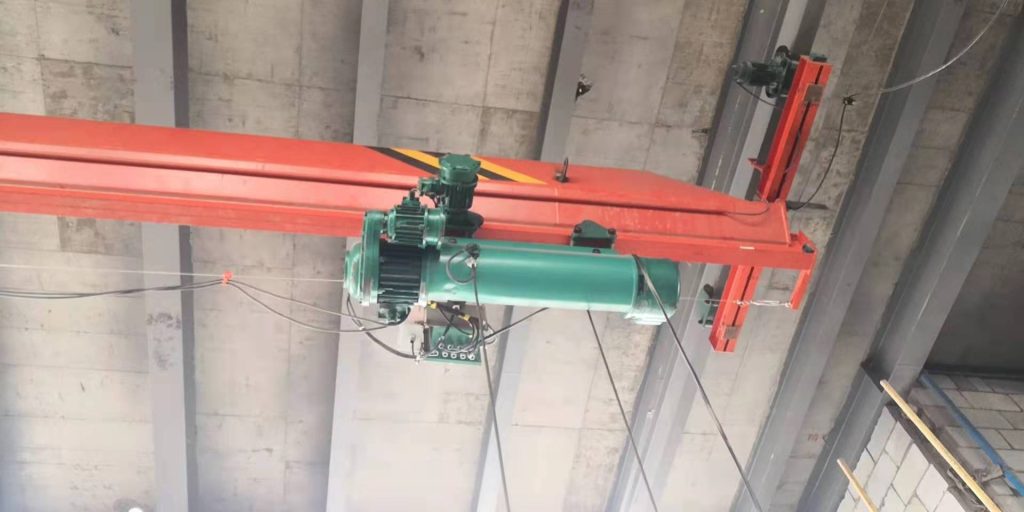

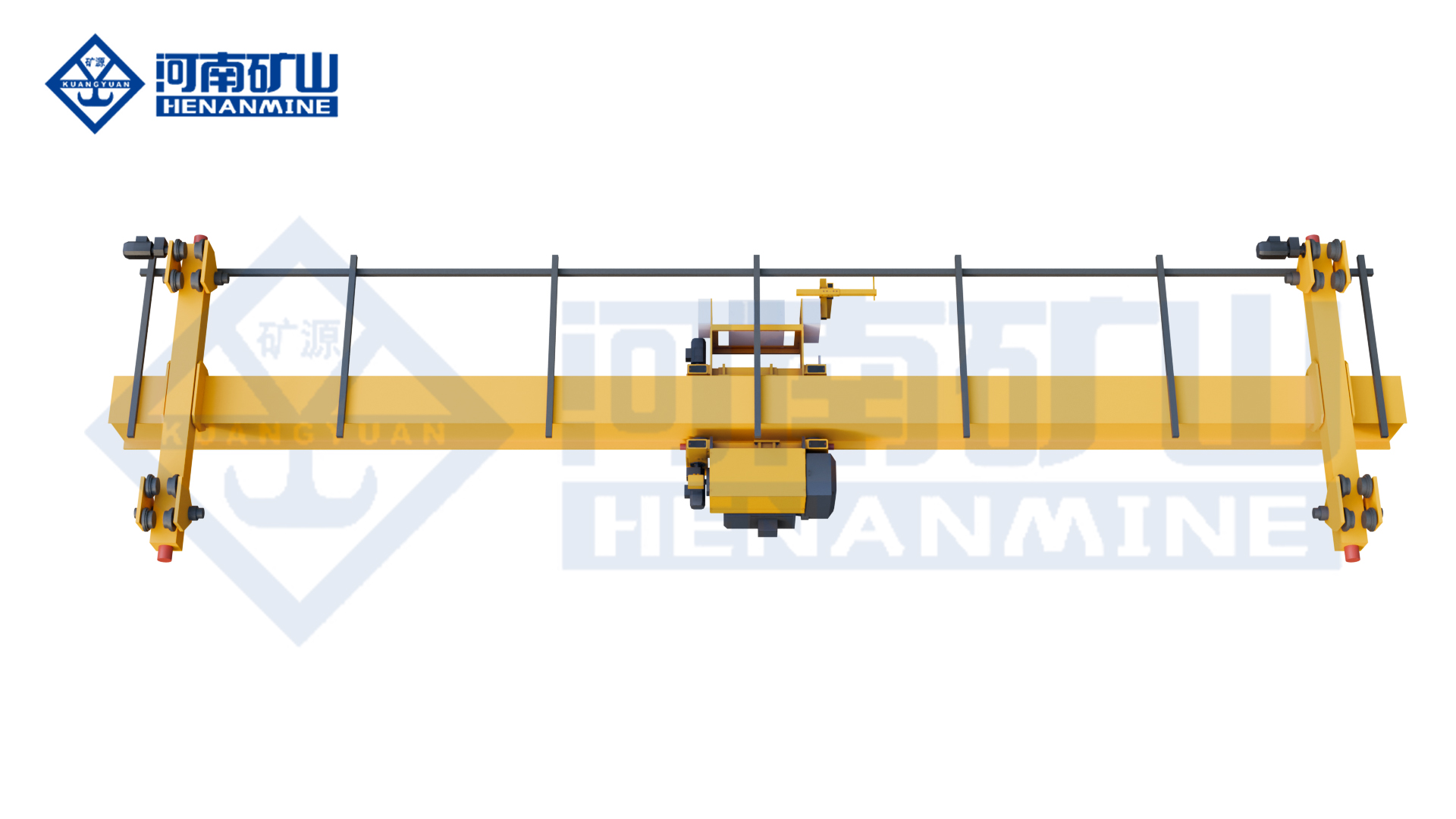

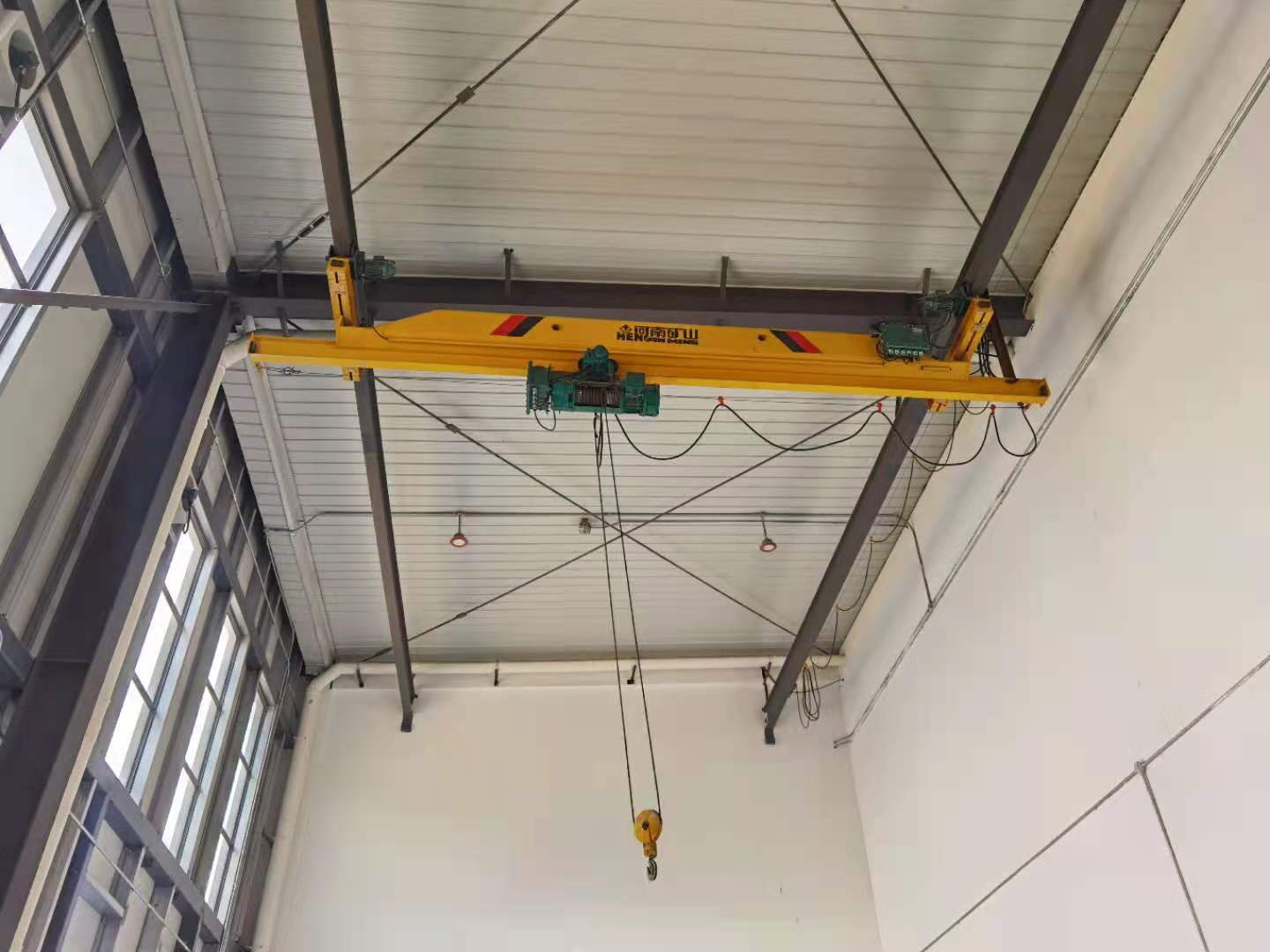

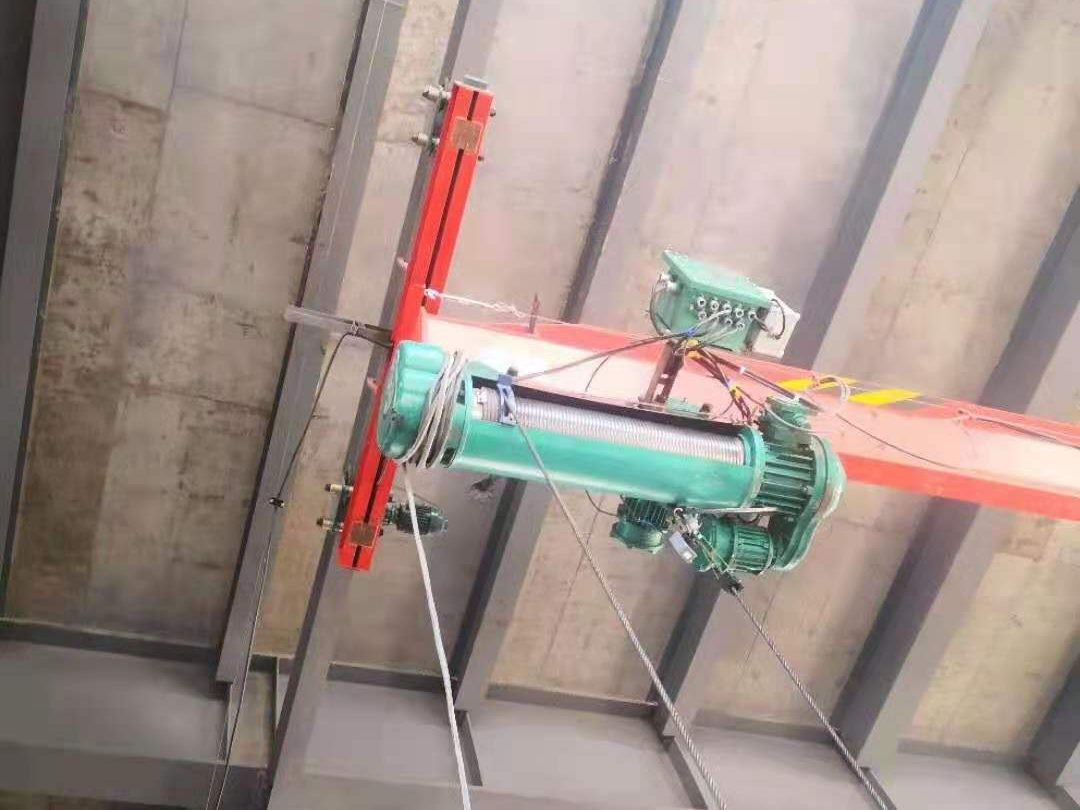

Source product image associated with the LXB Explosion-Proof Suspension Crane, showing the suspended crane or explosion-protected lifting arrangement.
|
Source product image associated with the LXB Explosion-Proof Suspension Crane, showing the suspended crane or explosion-protected lifting arrangement.
|
Source product image associated with the LXB Explosion-Proof Suspension Crane, showing the suspended crane or explosion-protected lifting arrangement.
|
Source product image associated with the LXB Explosion-Proof Suspension Crane, showing the suspended crane or explosion-protected lifting arrangement.
|
Source product image associated with the LXB Explosion-Proof Suspension Crane, showing the suspended crane or explosion-protected lifting arrangement.
|
|
Main Crane Components
| Suspended Runway |
Runway supported from the building structure. |
| Single Main Girder |
Underhung bridge carrying the lifting mechanism. |
| Explosion-Proof Electric Hoist |
Main lifting mechanism selected for the classified environment. |
| Explosion-Proof Travel Components |
Project-specific drive and electrical components selected to the hazardous-area requirement. |
| Control & Protection System |
Configured to the buyer's approved explosion-protection and operating specification. |
Technical Parameters
| Model |
LXB |
| Product Type |
LXB Explosion-Proof Electric Single Girder Suspension Crane |
| Lifting Mechanism |
Explosion-proof electric hoist |
| Capacity |
Project-specific |
| Bridge Span / Working Width |
Project-specific |
| Runway Length |
Project-specific |
| Lifting Height |
Project-specific |
| Suspension-Point Spacing |
According to building structure and crane design |
| Hoisting Speed |
Project-specific unless source-stated below |
| Crane Travel Speed |
Project-specific unless source-stated below |
| Control Method |
Project-specific |
| Power Supply |
According to site electrical conditions |
| Building Support Loads |
Calculated from final crane configuration |
| Explosion-Protection Grade |
To be selected from the buyer's approved hazardous-area specification; no universal grade is published on the source page |
Source-Confirmed Features & Buyer-Defined Options
Source-confirmed product facts:
- Developed from the suspension electric-hoist bridge-crane concept.
- Explosion-proof electric hoist is used as the lifting mechanism.
- Intended for intermittent and repetitive material handling in flammable and explosive environments.
- Provides vertical lifting, cross travel and long travel.
- Roof-level suspension releases floor space.
- Source states low self-weight and lower structural requirements.
- Installation is flexible and the suspended system is described as expandable for workshop coverage.
Buyer-defined items for quotation:
- Approved hazardous-area / explosion-protection specification
- Capacity and load type
- Required coverage / span and runway length
- Lifting height and hook approach
- Operating frequency and duty
- Control method
- Power supply
- Building support / suspension-point data
- Installation and commissioning scope
Application Scenarios
| Flammable-Gas Process Areas |
Handling where an explosion-protected crane is required. |
| Chemical / Process Workshops |
Overhead lifting with clear floor space in classified areas. |
| Hazardous Maintenance Bays |
Maintenance lifting where floor-mounted crane supports are undesirable. |
| Classified Production Areas |
Intermittent material handling under an approved hazardous-area specification. |
How to Select the Right LXB Explosion-Proof Suspension Crane
1. Provide the Hazardous-Area Classification
State the approved zone or division system, hazardous medium and governing standard.
2. Confirm Gas Group and Temperature Requirement
Where applicable, provide gas/vapor group and temperature class.
3. Verify Roof Support Capacity
Explosion-proof equipment does not remove the need to check suspension loads on the building.
4. Confirm Crane Coverage
Provide span, runway length and required hook positions.
5. Confirm Load and Duty
Provide maximum suspended load, operating frequency and daily working hours.
Building & Safety Checks Before Ordering
- Confirm the approved hazardous-area classification and governing explosion-protection standard before equipment selection.
- Verify roof truss, support beam and suspension-point capacity for crane loads.
- Confirm runway level, building deflection limits and available headroom.
- Confirm rated capacity, hoisting limits, braking and emergency-stop requirements.
- Confirm electrical protection, power supply and operator control method.
- Check interference with ducts, lighting, process piping, conveyors and other overhead equipment.
- Define inspection, installation and acceptance requirements before production.
Explosion-protection note: The source identifies this product as explosion-proof, but it does not publish one universal protection grade. Gas, vapor or dust classification must be confirmed from the actual project before quotation.
Installation & Maintenance
Suspension-crane installation should be coordinated with the building structure. Before manufacture or installation, verify support-point locations, runway straightness and level, structural steel capacity, available erection access, electrical supply and any overhead obstructions.
Maintenance should follow the final supplied crane manual and include the hoist, brakes, wheels or travel assemblies, fasteners, suspension connections, runway components, limits and electrical protection. Multi-point systems also require inspection of synchronization and the condition of each support / travel point.
What Information Do We Need for a Quote?
| 1 |
Hazardous-area classification |
| 2 |
Hazardous gas / vapor details |
| 3 |
Gas group and temperature class if applicable |
| 4 |
Maximum lifted load |
| 5 |
Span |
| 6 |
Runway length |
| 7 |
Lifting height |
| 8 |
Roof / support structure drawings |
| 9 |
Control method |
| 10 |
Power supply and governing standard |
| 11 |
Destination and installation scope |
Frequently Asked Questions
What explosion-proof grade is standard for the LXB crane?
The source does not publish one fixed grade. The final grade must be selected from the buyer's approved hazardous-area classification and project standard.
Can the LXB keep the workshop floor clear?
Yes. The source highlights that the suspended crane is installed below the roof and releases floor space.
What is the lifting mechanism?
The source specifies an explosion-proof electric hoist.
What information should I send before asking for a price?
Hazardous-area details should be sent together with load, span, lifting height, runway length and building-support information.
Related Suspension Crane Products
| LX Electric Single Girder Suspension Crane |
| LXD Multi-Point Single Girder Suspension Crane |
| LXB Explosion-Proof Single Girder Suspension Crane |
| KSLX New-Type Single Girder Suspension Crane |
| LXB Dust Explosion-Proof Suspension Crane |
| BLXD Explosion-Proof Multi-Point Suspension Crane |
Request A LXB Explosion-Proof Suspension Crane Quote
Send your load, required crane coverage, lifting height, building / roof-support drawings, operating cycle and control requirements. Henan Mine Crane engineers will review the suspended-runway concept, building interfaces and product configuration before preparing a quotation.
